EZ Tune Tuner Mini Pedal

EZ-TUNE

EZ-TUNE Tuner Mini Pedal

The EZ TUNE Mini Tuner Pedal is a compact, pedalboard-friendly tuner that supports equal temperament and features dual bypass modes, built for musicians who demand precise intonation, need compatibility with multiple instruments, and prefer a space-saving design. It comes with a 2.2-inch high-definition LCD screen for clear, easy-to-read tuning status, supports A4 frequency adjustment from 430Hz to 449Hz, and includes Flat tuning mode to meet the tuning needs of equal temperament instruments like guitar, bass, and violin. True Bypass preserves your original signal integrity, while Buffered Bypass solves impedance matching and signal compensation issues. Switch between the two modes as needed to ensure high-fidelity, stable signal transmission. Its rugged, compact housing fits easily on any pedalboard. Whether you’re performing live or practicing daily, it’s your reliable partner for precise tuning.

Product
Features
Specification
Downloads

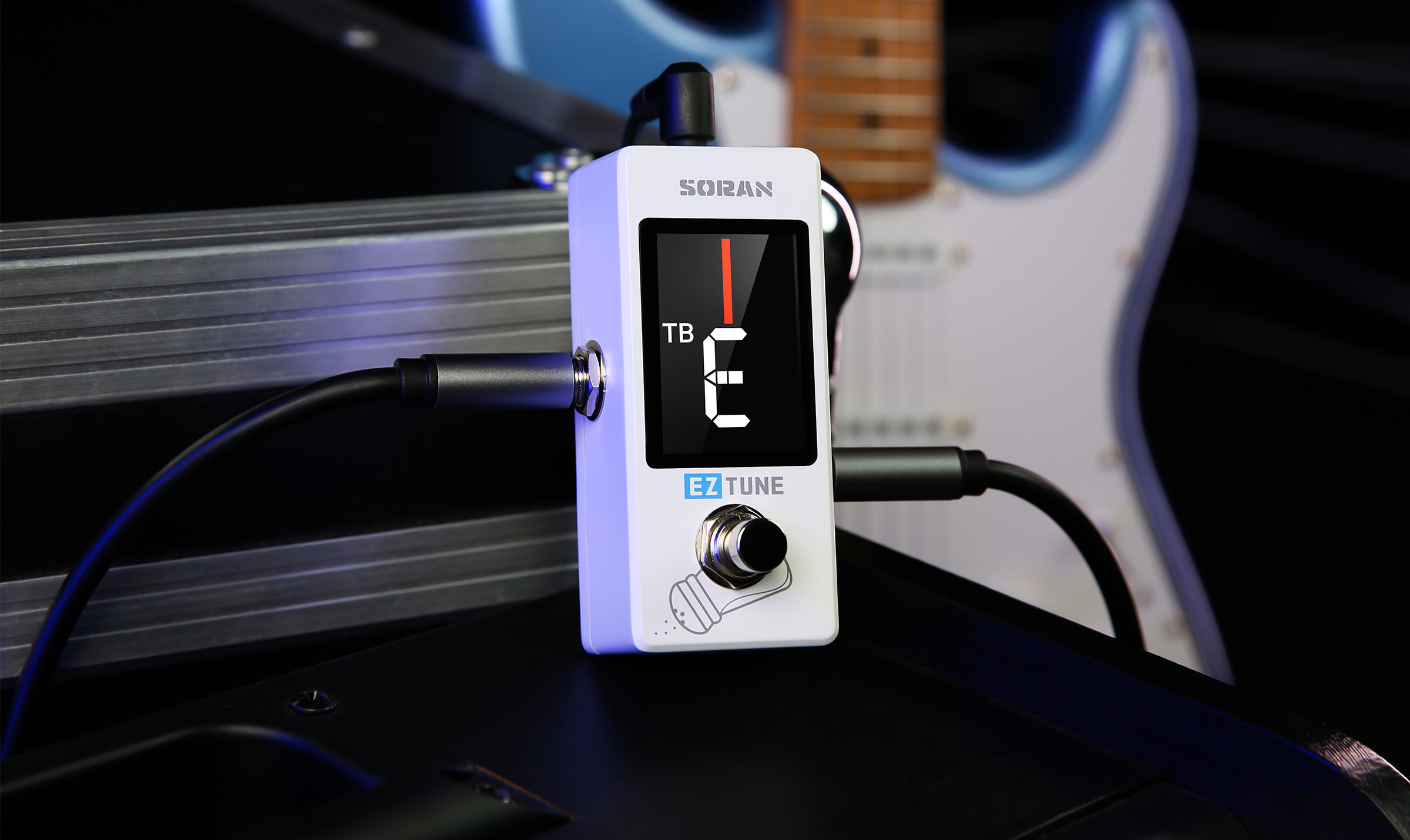

All-Instrument Accuracy, The Go-To Tuner

Compatible with all instruments tuned to 12-tone equal temperament, this mini tuner delivers fast, precise tuning for guitars, basses, and stringed instruments alike. With reliable pitch control and seamless performance, it’s the ideal choice for live shows, studio sessions, and daily practice.

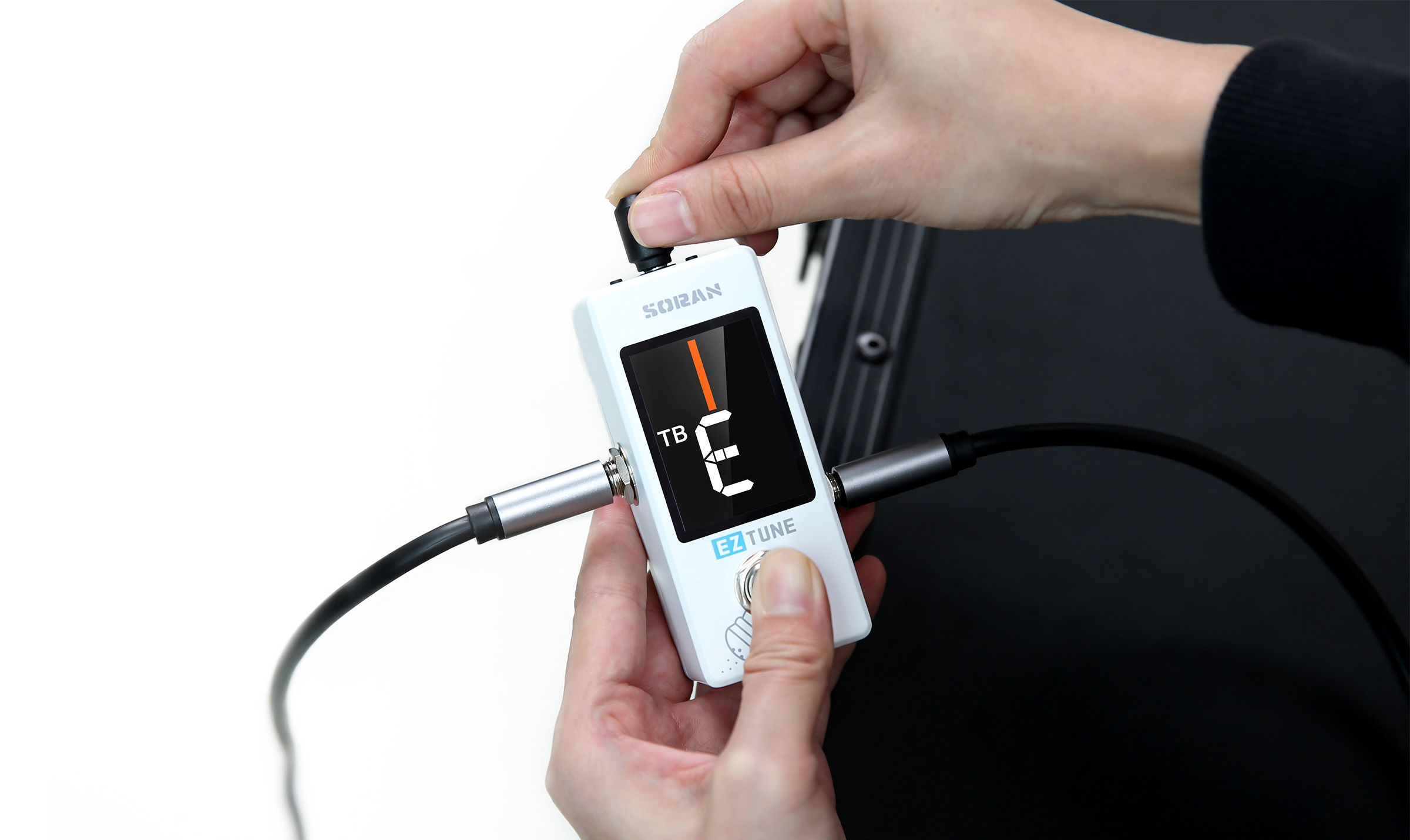

Dual Bypass Modes, Uncompromised Signal Flow

True Bypass (TB): Features a noise-free design that transmits your pure instrument signal without alteration when the tuner is disengaged, preserving your natural tone for tone-conscious players.

Buffered Bypass (BF): Equipped with a built-in buffer circuit to resolve impedance matching issues. It compensates for signal loss when multiple pedals are daisy-chained, ensuring a stable, clear signal chain.

Dual Bypass Modes, Uncompromised Signal Flow

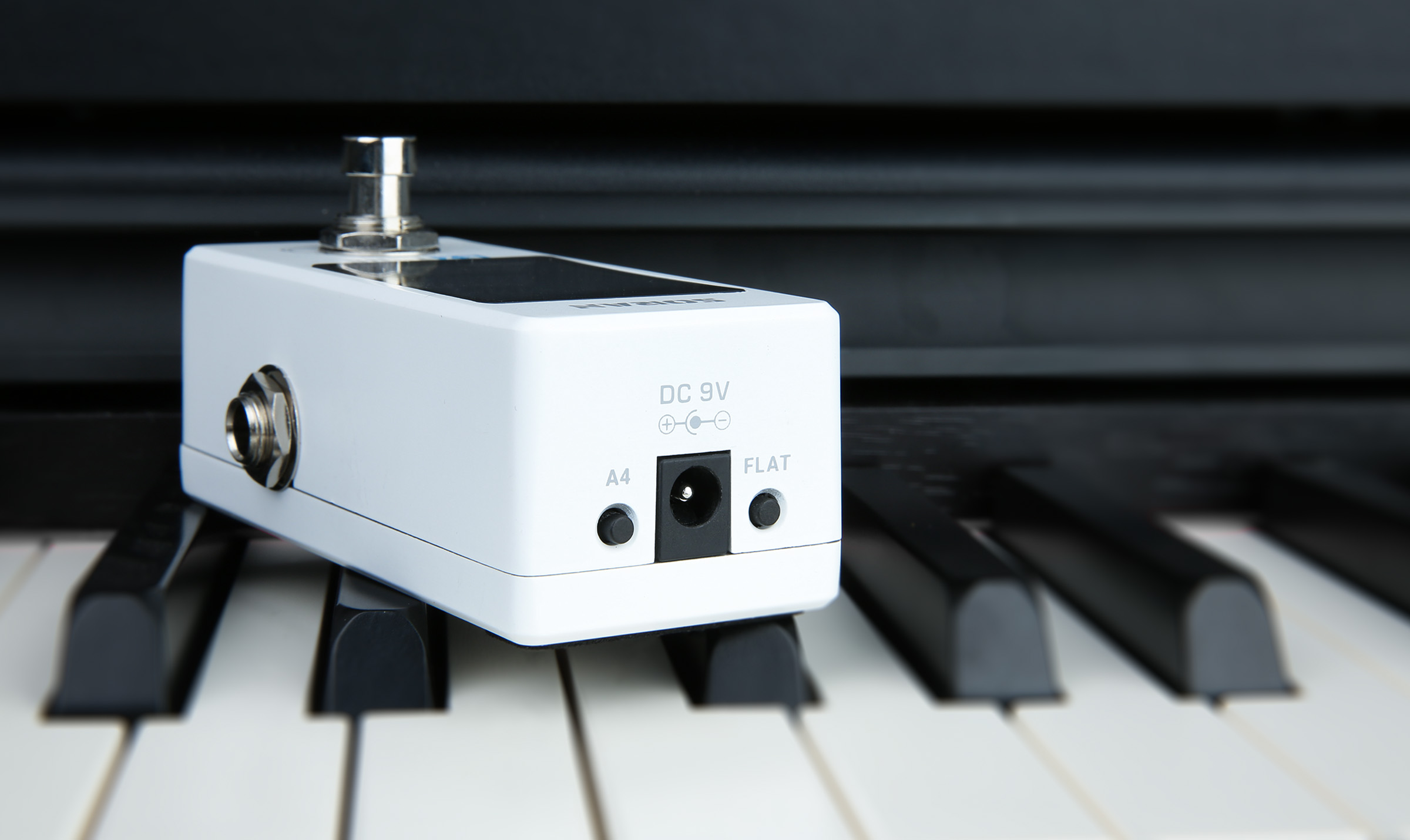

A4 Frequency Range, Precision Tuning for Every Style

Supports wide-range A4 frequency adjustment from 430Hz to 449Hz (default 440Hz). This precise tuning capability matches the pitch requirements of various instruments and playing styles, ensuring accurate intonation for any scenario.

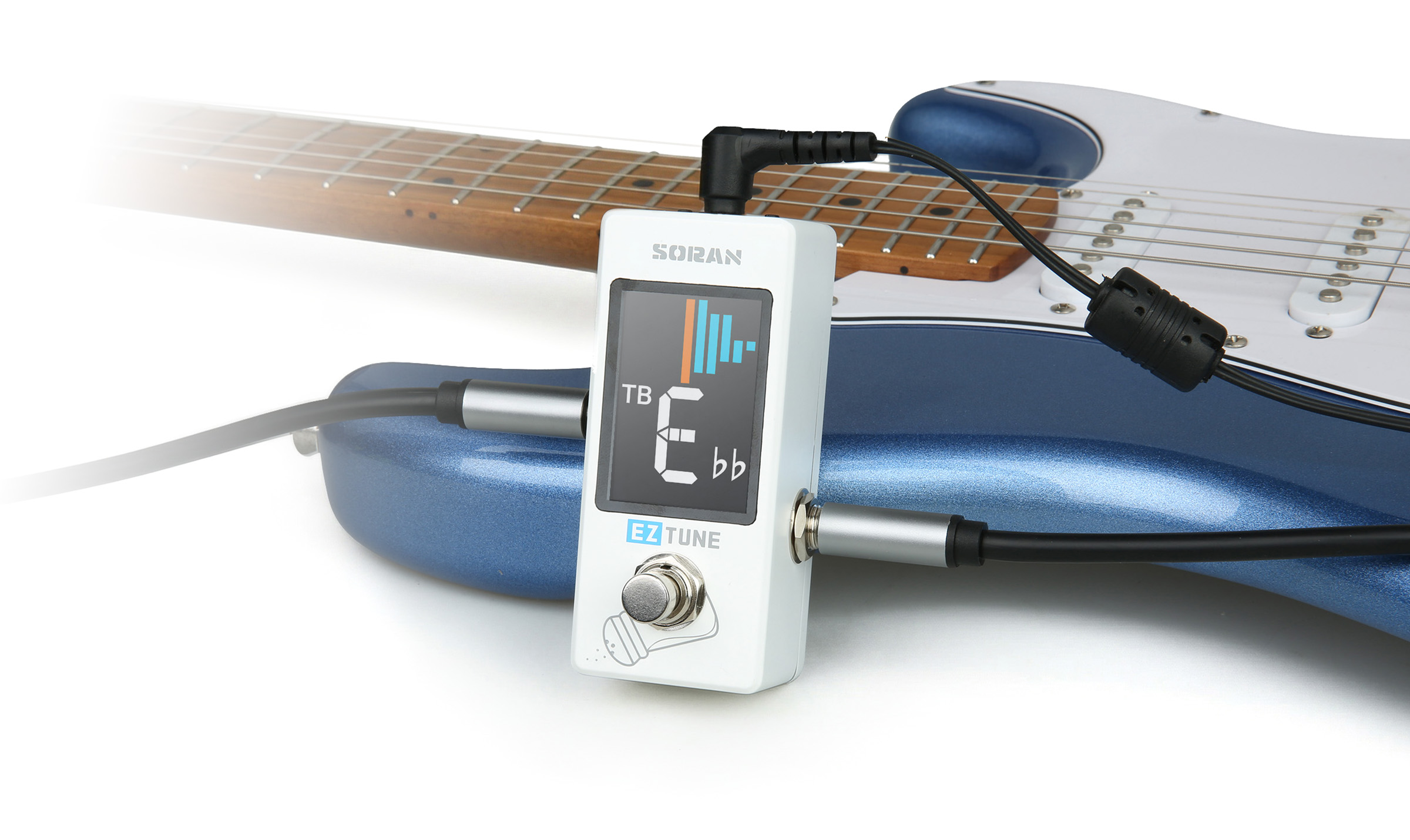

One-Touch Flat Tuning for Alternate Tunings

Instantly switch to Flat tuning mode with a single press to access alternate guitar tunings. The intuitive, one-touch operation simplifies setup, allowing you to quickly adapt to diverse playing demands.

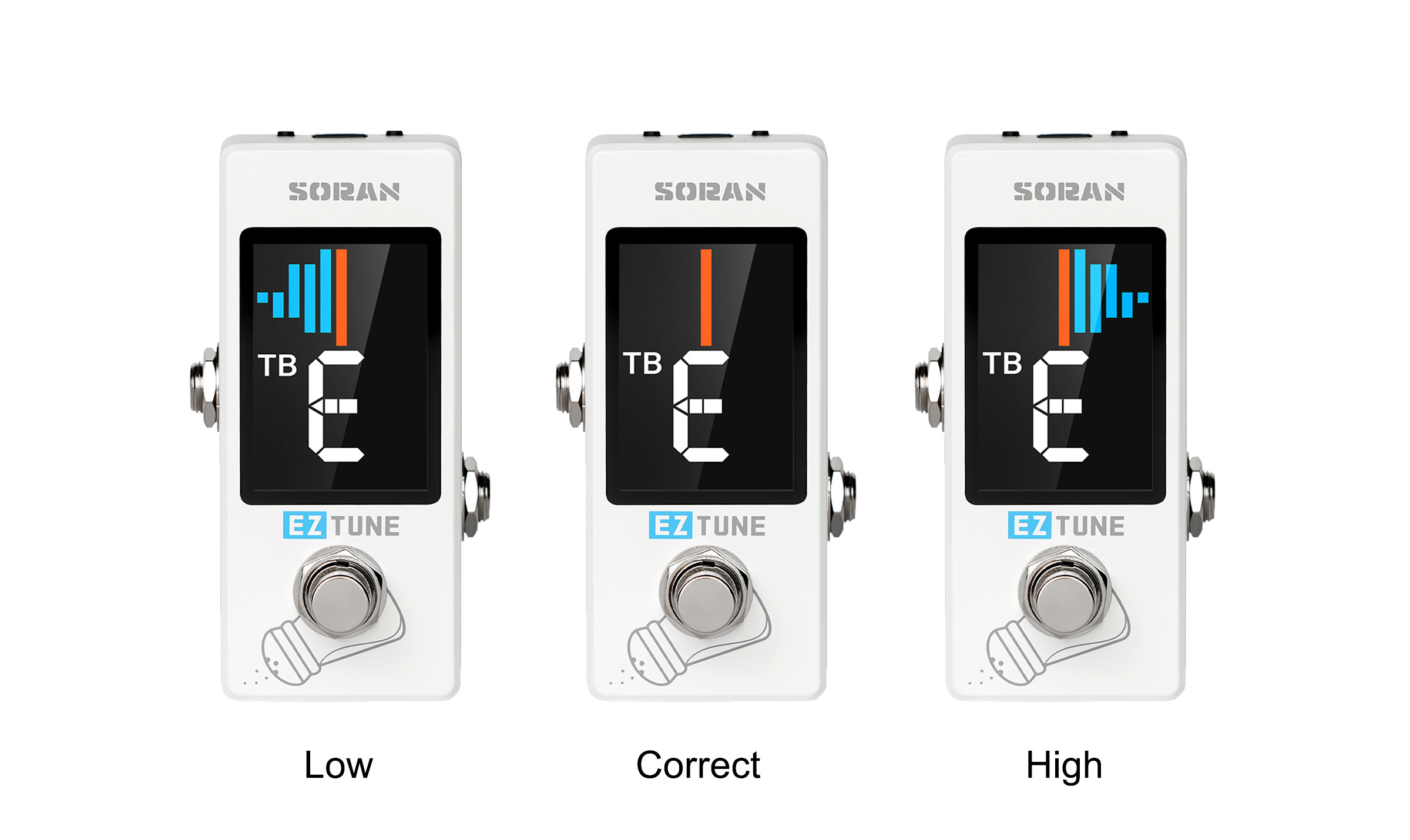

High-Definition Display, Faster Tuning

Equipped with a 2.2-inch high-resolution LCD screen, the tuner displays tuning status, mode switches, and frequency parameters at a glance. Readable even in bright sunlight or low-light conditions, it enables quick, accurate pitch adjustment for maximum efficiency.

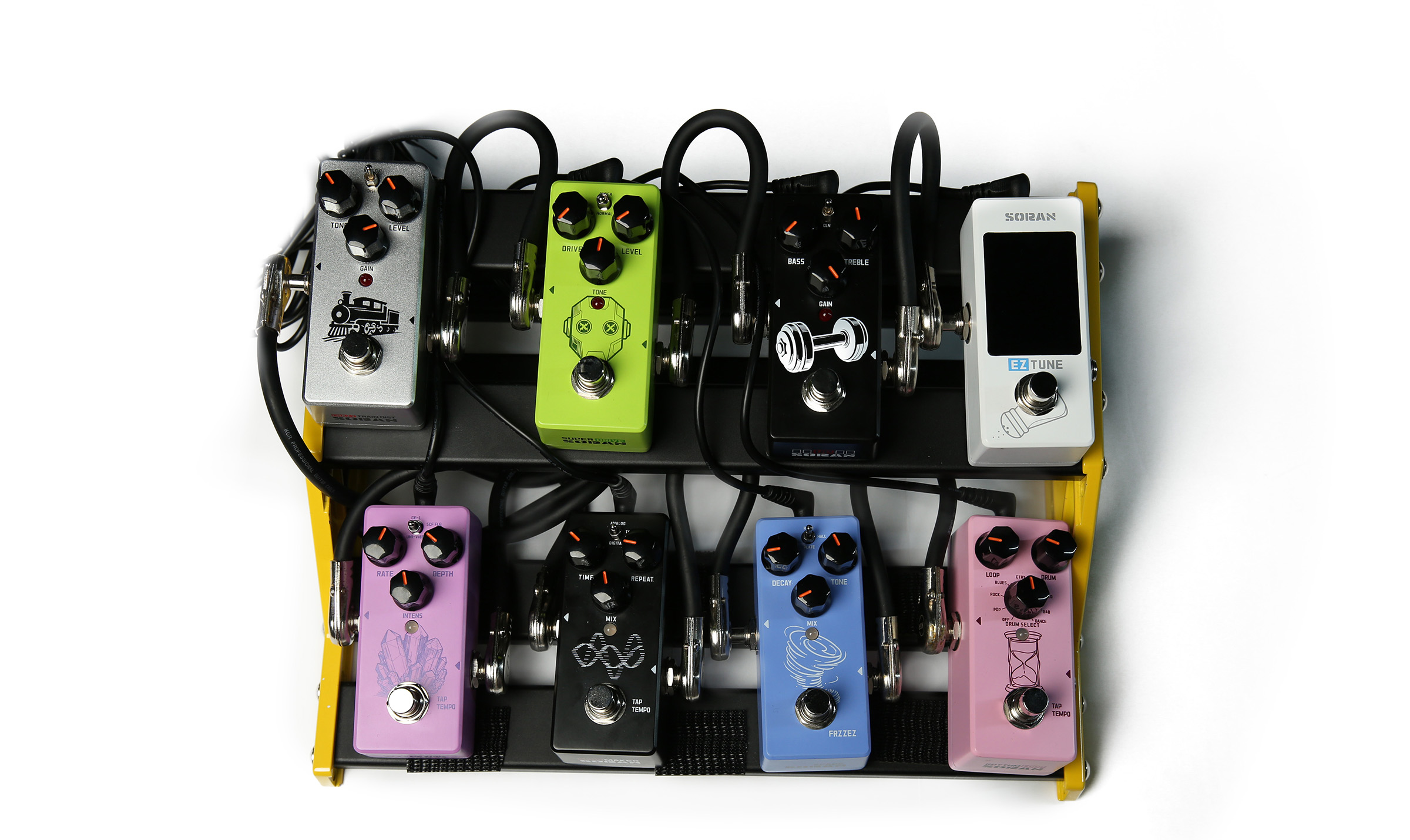

Tough & Compact, Built for Any Stage

Crafted from a rugged metal chassis, the tuner is shockproof and wear-resistant, standing up to the rigors of road transport and band rehearsals while delivering consistent performance over time.

Its compact, space-saving design fits effortlessly on any pedalboard, making it a lightweight, portable companion for gigs and rehearsals.

Features

Precision tuning compatible with all equal-tempered instruments (guitar/bass/violin, etc.).
Two professional bypass modes: True Bypass preserves original tone, while Buffered Bypass matches impedance and compensates signal through the built-in buffer.
Adjustable reference pitch (430Hz-449Hz) for perfect adaptation to various instruments and playing styles.
2.2-inch high-definition LCD display provides clear visual tuning feedback.
Supports special tuning with one-touch Flat mode switching.
Durable and compact design for stage performances and .

Specification

Power	DC 9V, Center Negative
Tuning Range	Ao (27.5Hz)-Cs (4186Hz)
Tuning Mode	Chromatic
Tuning Accuracy	±0.1 Cent
Input Impedance	10ΜΩ
Output Impedance	1ΚΩ
Current Draw	<100mA
Dimensions	97(L)x51(W) x51(H) mm
Weight	207g

Downloads

Manuals

EZ-TUNE Mini Tuner Pedal_V1.0.0_User Manual.pdf
